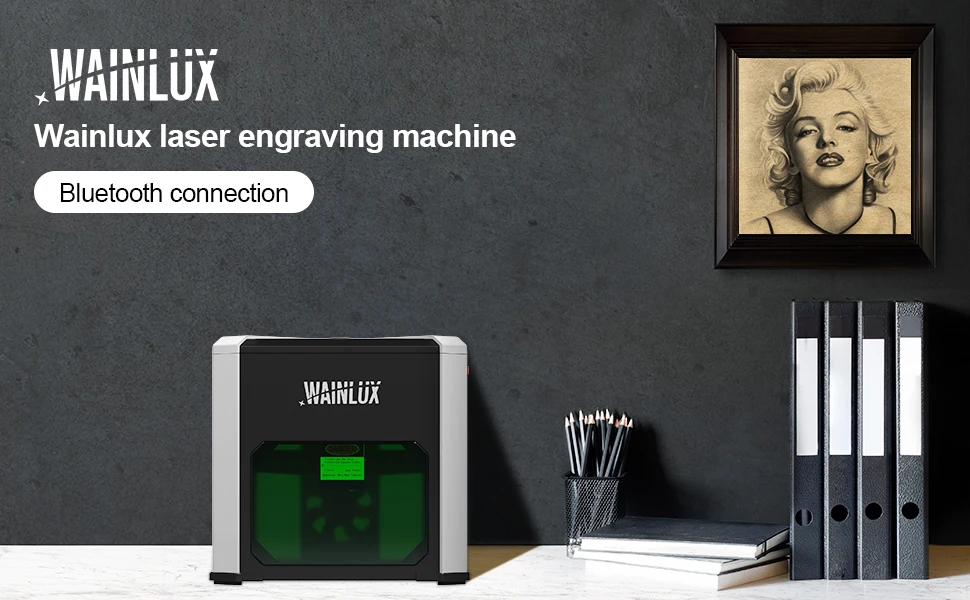

Wainlux K6 Bluetooth Laser Engraver - Portable Printer, Engraving, Cutting, 80x80mm, CNC, Machine Stand, Wood, Plastic
Wainlux K6 Bluetooth Laser Engraver - Portable Printer, Engraving, Cutting, 80x80mm, CNC, Machine Stand, Wood, Plastic
FEATURES
CNC or Not: CNC
Certification: CE, FCC, ROHS, weee
Highly Concerned Chemical: None
Condition: New
Is it a smart device? YES
Brand name: WAINLUX
Model number: K6
Origin: CN (Origin)
LEARN MORE
Model: Wainlux K6
Material: ABS
Control model: PWM
Operating system: WIN-7/8/10/Mac; iOS, Android
Applicable materials: Paper/wood chips/plastic/fabric/leather/cardboard/cloth, etc.
Interface specification: 3W laser output
Connection method: USB cable/Bluetooth/offline control
Wavelength: 450 nm
Working area: 80*80mm
Languages: English, German, Spanish, Italian, French, Korean, Japanese
Total power: 17W
Optical output power: 3W
Supported graphic formats: JPG/JPEG/BMP/TIF/GIF/DXF
Laser point: 0.05 mm
Machine power supply voltage: 12V 2A
Control line installation method: There is no need to install the machine.
Best focusing range: 30-50mm
Best focusing length: 100 mm
Mode: Adjustable focus
Product weight: 0.96 kg
Package weight: 1.65 kg
Product dimensions (L x W x H): 172 x 172 x 162 mm
Safety warning: There are warning signs; if the machine has moved or tipped over, the laser will automatically shut off.
Noticed
1. The product is a home-use laser engraving machine, a tool machine, and cannot be compared to an industrial-use laser engraving machine.
2. Do not use the laser pointer head towards humans or livestock, do not use the laser pointer towards people's eyes.
3. The laser has power. Exposure of the skin to the laser is strictly prohibited.
4. This product is not suitable for children under 14 years of age.
5. Metal, stainless steel, crystal and precious stones or jewelry cannot be engraved.
6. The item's color may vary slightly due to photography and different computer monitors, and the size may be slightly inaccurate due to manual measurement. Your understanding would be appreciated.
7. You may need to temporarily disable your antivirus software before downloading the software. Otherwise, some of the software's files might be mistaken for viruses and deleted by your antivirus program.
8. Please refer to the user manual for operating instructions. After 20 minutes of operation, a break is required; continuous operation for extended periods is not possible.
High points
1. COMPACT SIZE. POWERFUL LASER: Its 3000mW laser power makes it faster and more powerful than other handheld engravers. It makes engraving on harder surfaces a breeze! Engraving materials include cardboard, wood, leather, fabric, plastic, paper, and other flammable materials (such as cell phone cases, mice, business cards, wallets, etc. Glass must be sprayed with paint, etc.). Note: Metal, stainless steel, crystal, gemstones, and jewelry cannot be engraved.
2. SIMPLE CONNECTION. SMART CONTROL: You can connect via Bluetooth to your Android or iOS mobile phone. Once connected, select your design in the app and start the engraving process. You can also connect via USB to your Windows or Mac computer. Our app is completely free and has a simple interface that supports various file formats. There are four engraving styles: black and white, discrete, and outline. Supported image formats include JPEG/JPG/GIF/BMP/PNG.
3. DURABLE DESIGN: This is a miniature laser engraving machine with a fully enclosed, concealed body design. It's the perfect portable art studio you can take anywhere! The built-in protective lenses reduce harmful blue light from the lasers, allowing you to safely observe the engraving process without damaging your eyes when using appropriate eye protection. The integrated exhaust system prevents any fumes from the engraving process from affecting the final design and helps dissipate heat.
4. EASY TO USE AND ENGRAVE SAFELY: The K6 mini laser engraver projects a preview of your image onto the surface before engraving! It displays the intended engraving size, making it easy to see where your finished project will be located. Motion protection and overheat monitoring: During engraving, if the internal temperature approaches its heat threshold or if accidental movement is detected during operation, it will immediately shut down to ensure the safety of users and equipment.
5. QUALITY ASSURANCE AND AFTER-SALES SERVICE: We have a professional customer service team. If you need pre-sales consulting or encounter any problems, you can access more product-related services and assistance through our support website (contact customer service)! The WAINLUX K6 laser engraving machine has passed CE, FCC, and FDA certifications. We are so confident that you will love this laser engraver.
Supports several localized language operations
Based on application optimization and upgrades, our self-developed software can support multilingual switching (English/Russian/German/Japanese/Korean/Italian/German), not only easy to use for beginners, but also localized software that allows you to easily overcome language barriers and maximize the promotion of your operating experience.

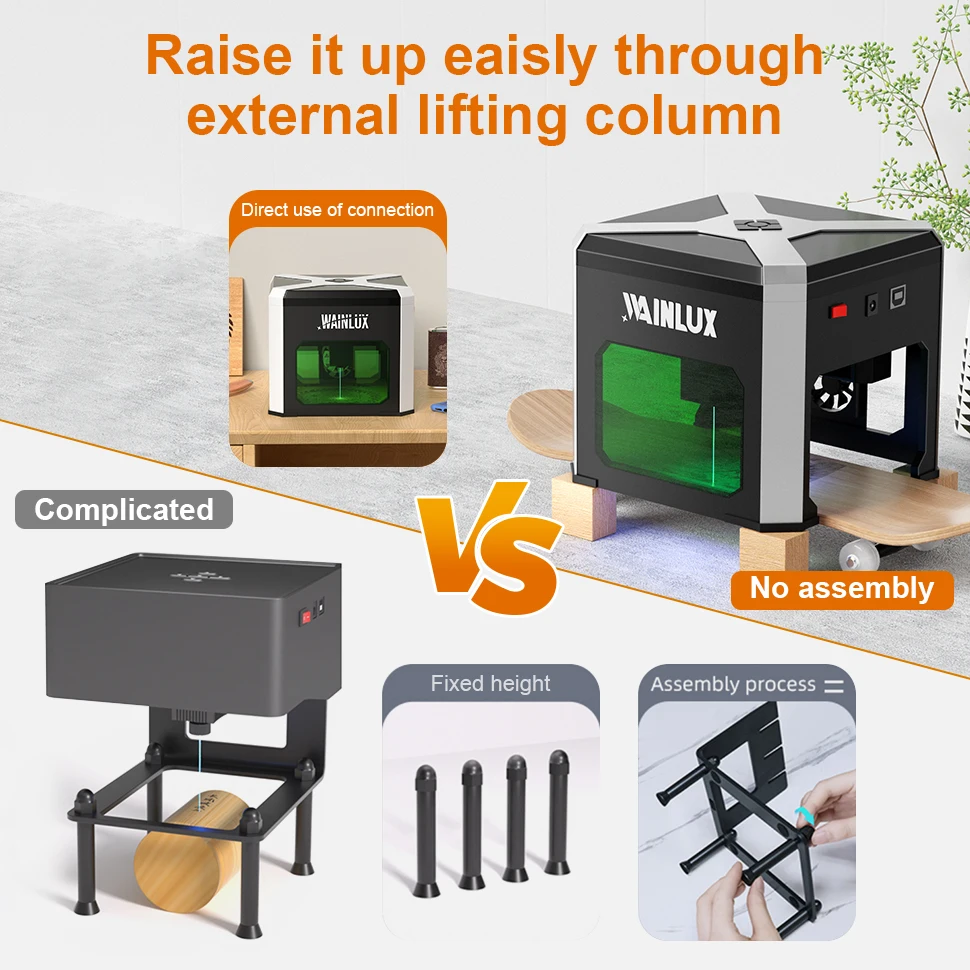

Lift it easily using the external lifting column
To accommodate engraving larger and taller objects, the K6 model can also be easily modified by adding lower pads to the four base pieces. For objects of varying heights, you can choose a lower pad of the appropriate height to meet your daily needs. No repeated disassembly is required, reducing damage to the machine, and the integrated structure is strong and stable, resulting in smoother, shake-free engraving and improved engraving results.
Small but powerful (3000mW laser head)
This portable mini laser engraver is equipped with a 3W laser head, which can engrave various everyday objects, such as breakfast bread, bookmarks, kraft paper magazines, mugs, and so on. It can also cut wood and paper less than 2mm thick, and even cut into pieces of cake. Look around for personalized items.
Widely compatible

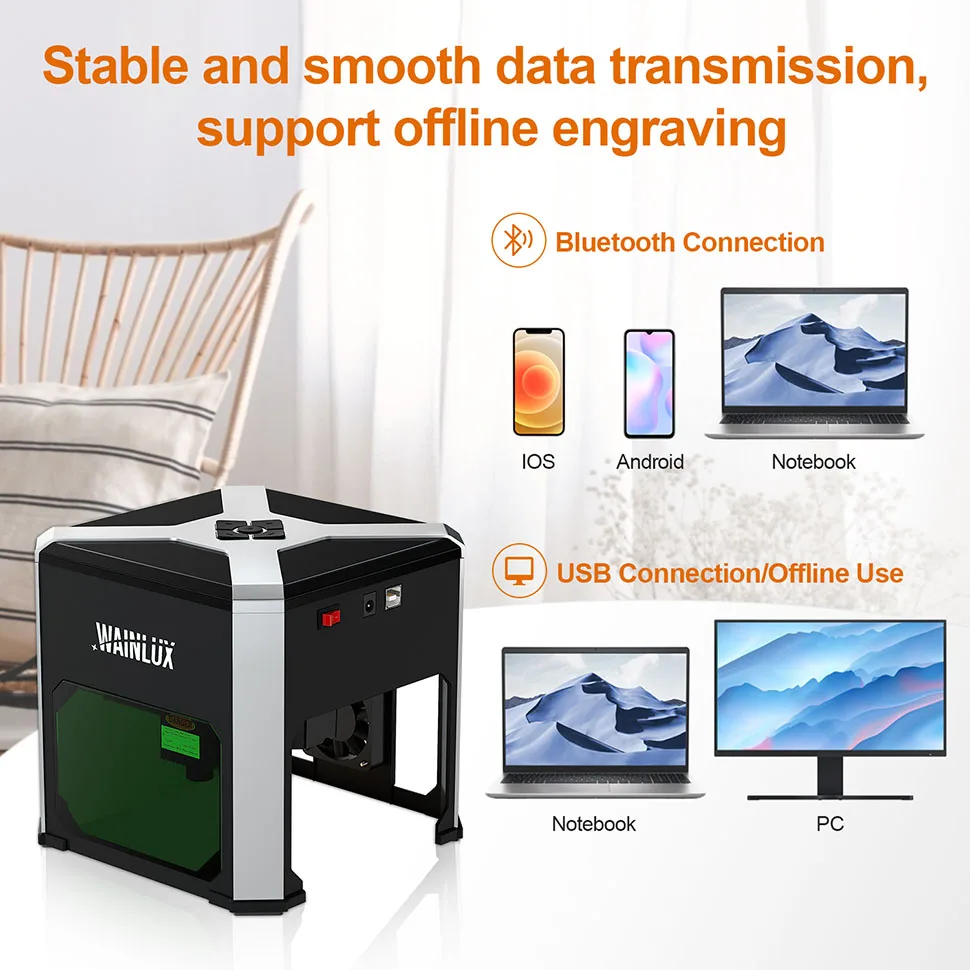

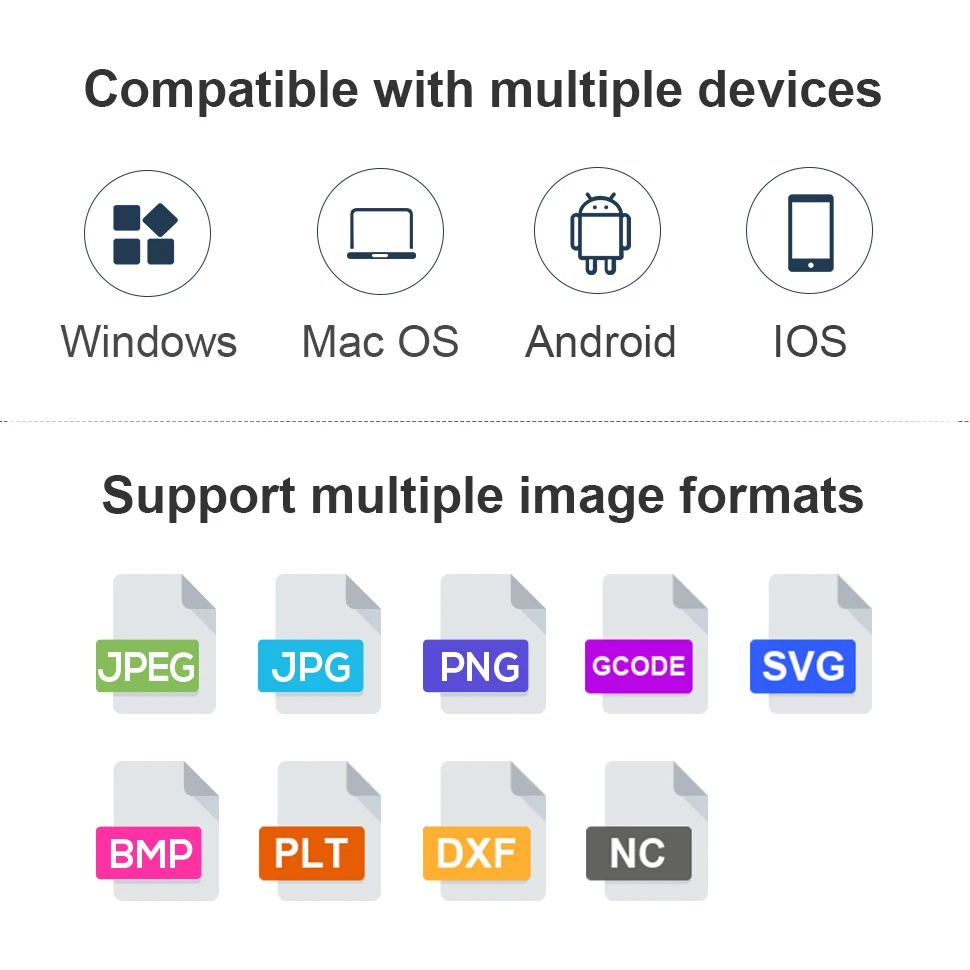

Our K6 model is compatible with all operating systems on the market, such as Windows 7/8/10 and Mac OS, connected via USB cable, plug and play; in addition, via Bluetooth connection, you can easily control the machine using a mobile phone with our self-developed application (free for life), user-friendly interface for beginners, supports image/photography/text/drawing/QR code, 5 engraving and cutting modes, unlimited formats including JPG/JPEG/BMP/DXF and so on
Bluetooth connection
We've upgraded the K6 to the K6 Pro. Bluetooth has replaced the hotspot connection, making the process faster and more stable. In less than 3 seconds, you can enjoy engraving on your mobile phone.
Preset eyes - Protective lens
With its preset eye protection lens, it can block 97% of high-brightness laser light directly without the need for glasses, preventing eye burns. This design is also suitable for people who wear glasses, providing a more convenient engraving experience.

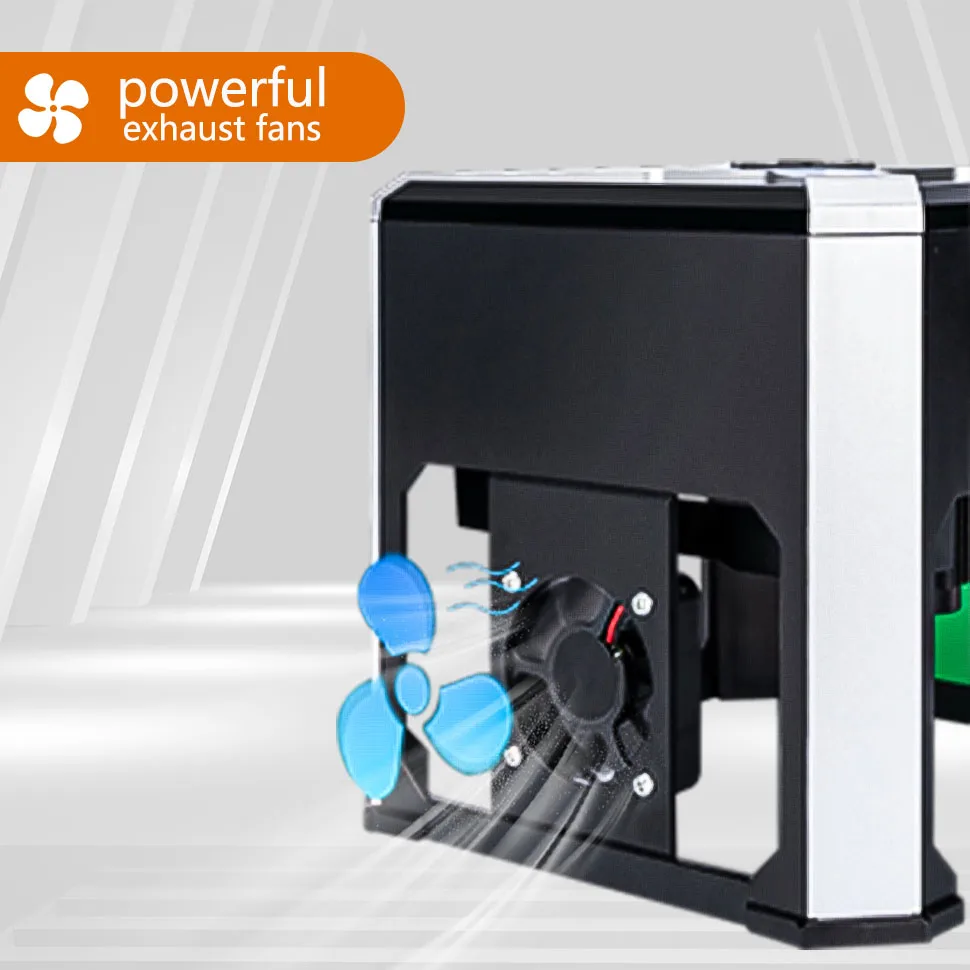

Powerful exhaust fans
Continuously eliminates smoke and dust generated by engraving, keeps the engraving environment clean and maintains a good engraving effect
DIY Your Crafts
With the cutting function, you can freely combine cutting materials to make more creative items.
Solid and robust
Made of lightweight and portable ABS material, the laser head has undergone over 1000 tests to ensure a longer lifespan. Meanwhile, it features multiple protections, a safer, faster, and smarter environment for you to enjoy.
Noticed
This machine cannot operate on pure metal surfaces, such as stainless steel and other jewelry; if you are unsure whether it is compatible, please confirm with us first, thank you.
Applicable display
It is faster and more powerful for carving on various surfaces, from wood to lacquered metal.
More details about the K6 laser engraver
Compact design and packaging included
Note: The driver and software will be included with the pendriver.
